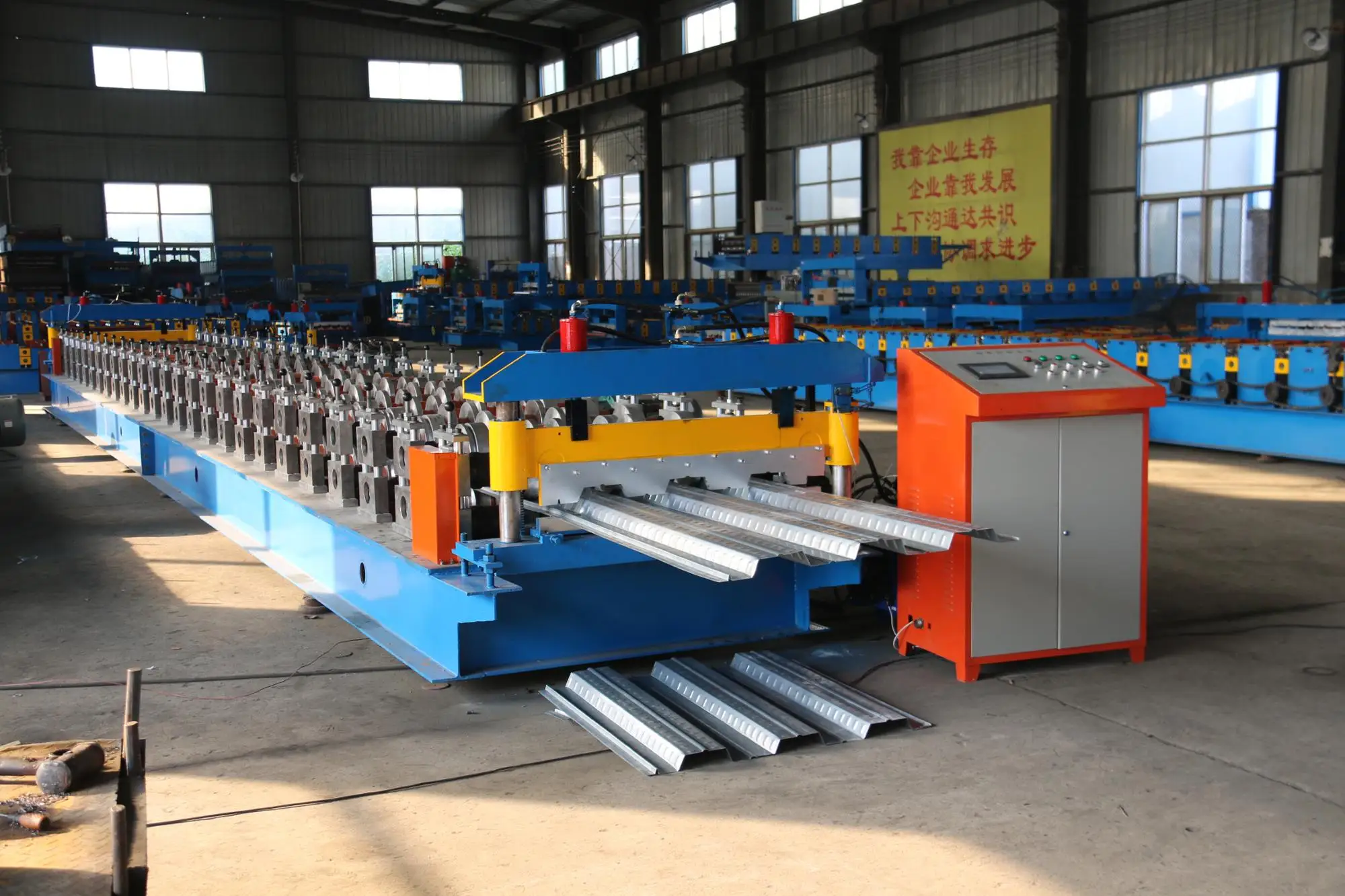

Protection board roll forming machine

Rolled material

0.5-1.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and

various steel plates

Effective width

688/700/718.5/750/760/992/960/914/915

Feeding width

1000/1200/1250mm

Forming steps

18-30 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

90mm

Main motor power

22 kw

Pump power

5.5 kw

Sprocket chain

2 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

component

set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,

1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
