Ridge cap roll forming machine

Ridge cap roll forming machine

Configurations

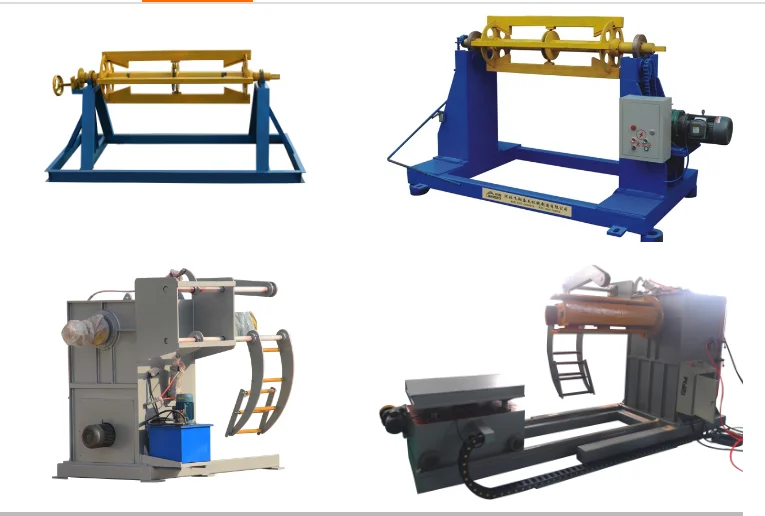

Manual decoiler 1 set, main roll forming machine 1 set, hydraulic cutting system 1 set, oil pump 1 set, automatic control system 1 set,conveyer 1 set.

Capacity

5T

Max coil width

1250mm

Inner diameter

450-550mm

Forming steps

11 steps

Shaft diameter

70mm

Shaft material

45# steel

Roller material

45# steel

Speed

3-5m/min

Motor

4kw

Cutting type

Hydraulic cutting

Cutter material

Cr12

Cutting tolerance

±1

Oil pump motor

4kw

Function

Automatic control the cutting length and quantity
