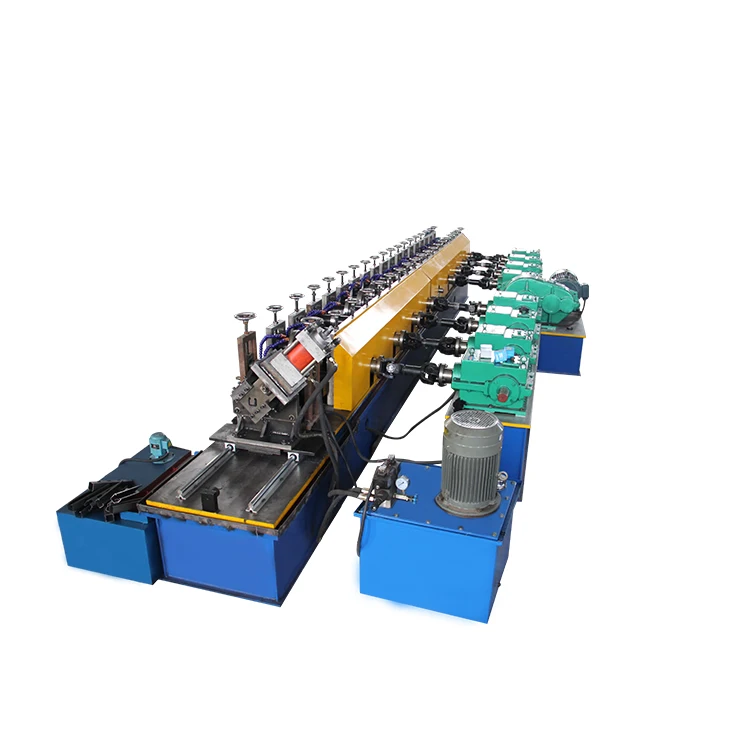

photovoltaic supportor roll forming machine

Technical parameters

Material Raw material Steel
Thickness 1.5-2.5mm
Configurations Manual Decoiler, Guiding Platform,Punching Machine,Main Machine Of Roll Forming,Cooling system,Cutting Device, Electric Motor, Hydraulic Station,PLC Control System, Run Out Table
Straightener Yes include
Roll Forming Machine Feeding unit Include
Shaft material GB 45# steel
Roller shaft diameter 80mm
Rolling stations 20 stations
Roller material  Cr12 MOV
Forming speed 0-2m/min
Machine frame Middle plate welded, plate thickness of 25mm
Transmission By chains
Power of main machine 22kw
Punching machine pressure 80T
Servo feeder 1 set
Cutting system Cutting type  Hydraulic
Motor power 3kw
Punching Part 63T Punching machine
Control system Type PLC-(Brand:Delta)
Control off/on Yes
Other Weight About 4.5 ton
Dimension 6400*1200*1000mm
Main body color Blue and yellow (or as required)
Voltage 380v-60hz-3phor as required
Total power kw
